P. 11

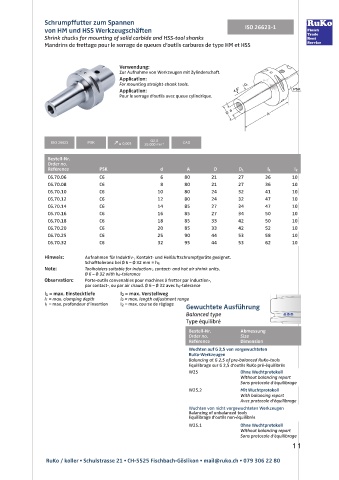

Schrumpffutter zum Spannen
von HM und HSS Werkzeugschäften ISO 26623-1
Shrink chucks for mounting of solid carbide and HSS-tool shanks
Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS
Verwendung:
Zur Aufnahme von Werkzeugen mit Zylinderschaft.
Application:
For mounting straight-shank tools.
Application:
Pour le serrage d’outils avec queue cylindrique.
G2,5
ISO 26623 PSK ≤ 0,003 25.000 min -1 CAD
Bestell-Nr.
Order no.
Référence PSK d A D D 1 l 1 l 2
C6.70.06 C6 6 80 21 27 36 10
C6.70.08 C6 8 80 21 27 36 10
C6.70.10 C6 10 80 24 32 41 10
C6.70.12 C6 12 80 24 32 47 10
C6.70.14 C6 14 85 27 34 47 10
C6.70.16 C6 16 85 27 34 50 10
C6.70.18 C6 18 85 33 42 50 10
C6.70.20 C6 20 85 33 42 52 10
C6.70.25 C6 25 90 44 53 58 10
C6.70.32 C6 32 95 44 53 62 10
Hinweis: Aufnahmen für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet.
Schafttoleranz bei Ø 6 – Ø 32 mm = h 6
Note: Toolholders suitable for induction-, contact- and hot air shrink units.
Ø 6 – Ø 32 with h 6-tolerance
Observation: Porte-outils convenables pour machines à fretter par induction-,
par contact-, ou par air chaud. Ø 6 – Ø 32 avec h 6-tolerance
l 1 = max. Einstecktiefe l 2 = max. Verstellweg
l 1 = max. clamping depth l 2 = max. length adjustment range
l 1 = max. profondeur d’insertion l 2 = max. course de réglage
Gewuchtete Ausführung
Balanced type
Type équilibré
Bestell-Nr. Abmessung
Order no. Size
Référence Dimension
Wuchten auf G 2,5 von vorgewuchteten
RuKo-Werkzeugen
Balancing at G 2.5 of pre-balanced RuKo-tools
Equilibrage sur G 2,5 d‘outils RuKo pré-équilibrés
W25 Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
W25.2 Mit Wuchtprotokoll
With balancing report
Avec protocole d‘équilibrage
Wuchten von nicht vorgewuchteten Werkzeugen
Balancing of unbalanced tools
Equilibrage d‘outils non-équilibrés
W25.1 Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
11
