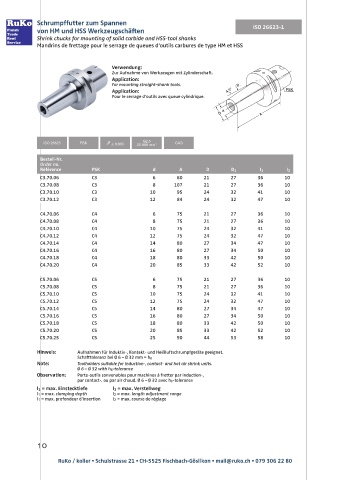

Schrumpffutter zum Spannen                                                  ISO 26623-1
              von HM und HSS Werkzeugschäften
              Shrink chucks for mounting of solid carbide and HSS-tool shanks
              Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS



                                        Verwendung:
                                        Zur Aufnahme von Werkzeugen mit  Zylinderschaft.
                                        Application:
                                        For mounting straight-shank tools.
                                        Application:
                                        Pour le serrage d’outils avec queue cylindrique.








                                                   G2,5
                ISO 26623    PSK       ≤  0,003  25.000 min -1  CAD

               Bestell-Nr.
               Order no.
               Référence         PSK                   d        A        D        D 1       l 1       l 2
           5   C3.70.06          C3                    6       60        21       27       36        10
               C3.70.08          C3                    8      107        21       27       36        10
               C3.70.10          C3                   10       95        24       32       41        10
               C3.70.12          C3                   12       84        24       32       47        10

               C4.70.06          C4                    6       75        21       27       36        10
               C4.70.08          C4                    8       75        21       27       36        10
               C4.70.10          C4                   10       75        24       32       41        10
               C4.70.12          C4                   12       75        24       32       47        10
               C4.70.14          C4                   14       80        27       34       47        10
               C4.70.16          C4                   16       80        27       34       50        10
               C4.70.18          C4                   18       80        33       42       50        10
               C4.70.20          C4                   20       85        33       42       52        10

               C5.70.06          C5                    6       75        21       27       36        10
               C5.70.08          C5                    8       75        21       27       36        10
               C5.70.10          C5                   10       75        24       32       41        10
               C5.70.12          C5                   12       75        24       32       47        10
               C5.70.14          C5                   14       80        27       34       47        10
               C5.70.16          C5                   16       80        27       34       50        10
               C5.70.18          C5                   18       80        33       42       50        10
               C5.70.20          C5                   20       85        33       42       52        10
               C5.70.25          C5                   25       90        44       53       58        10

              Hinweis:       Aufnahmen für Induktiv-, Kontakt- und  Heißluftschrumpfgeräte geeignet.
                            Schafttoleranz bei  Ø 6 – Ø 32 mm = h 6
              Note:          Toolholders suitable for induction-, contact- and hot air shrink units.
                            Ø 6 – Ø 32 with h 6-tolerance
              Observation:    Porte-outils convenables pour machines à fretter par induction-,
                            par contact-, ou par air chaud. Ø 6 – Ø 32 avec h 6-tolerance
              l 1 = max. Einstecktiefe   l 2 = max. Verstellweg
              l 1 = max. clamping depth   l 2 = max. length adjustment range
              l 1 = max. profondeur d’insertion   l 2 = max. course de réglage
