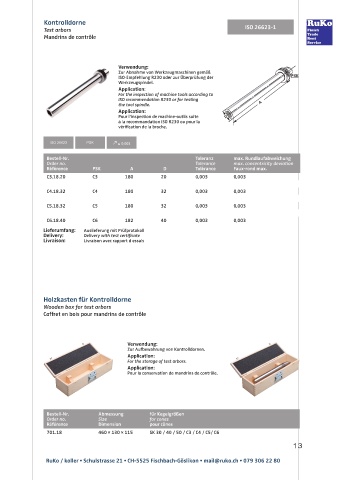

Kontrolldorne
Test arbors ISO 26623-1
Mandrins de contrôle
Verwendung:
Zur Abnahme von Werkzeugmaschinen gemäß
ISO-Empfehlung R230 oder zur Überprüfung der
Werkzeugspindel.
Application:
For the inspection of machine tools according to
ISO recommendation R230 or for testing
the tool spindle.
Application:
Pour l‘inspection de machine-outils suite
à la recommandation ISO R230 ou pour la
vérification de la broche.
ISO 26623 PSK ≤ 0,003
Bestell-Nr. Toleranz max. Rundlaufabweichung
Order no. Tolerance max. concentricity deviation
Référence PSK A D Tolérance Faux-rond max.
C3.18.20 C3 180 20 0,003 0,003
C4.18.32 C4 180 32 0,003 0,003
C5.18.32 C5 180 32 0,003 0,003
C6.18.40 C6 182 40 0,003 0,003
Lieferumfang: Auslieferung mit Prüfprotokoll
Delivery: Delivery with test certificate
Livraison: Livraison avec rapport d essais
Holzkasten für Kontrolldorne
Wooden box for test arbors
Coffret en bois pour mandrins de contrôle
Verwendung:
Zur Aufbewahrung von Kontrolldornen.
Application:
For the storage of test arbors.
Application:
Pour la conservation de mandrins de contrôle.
Bestell-Nr. Abmessung für Kegelgrößen
Order no. Size for cones
Référence Dimension pour cônes
701.18 460 × 130 × 115 SK 30 / 40 / 50 / C3 / C4 / C5/ C6
