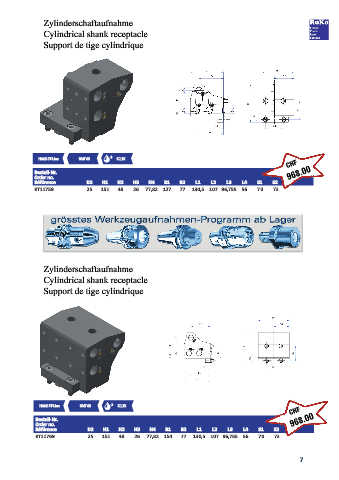

P. 7
Zylinderschaftaufnahme
Cylindrical shank receptacle
Support de tige cylindrique
HAAS ST-Line BMT 65 IC | EC
CHF
Bestell-Nr. 968.00
Order no.
Référence D2 H1 H2 H3 H4 B1 B2 L1 L2 L3 L4 S1 S2
RT11759 25 151 48 26 77,82 127 77 130,5 107 96,755 56 70 73
Zylinderschaftaufnahme
Cylindrical shank receptacle
Support de tige cylindrique
HAAS ST-Line BMT 65 IC | EC
CHF
Bestell-Nr. 968.00
Order no.
Référence D2 H1 H2 H3 H4 B1 B2 L1 L2 L3 L4 S1 S2
RT11769 25 151 48 26 77,82 154 77 130,5 107 96,755 56 70 73
