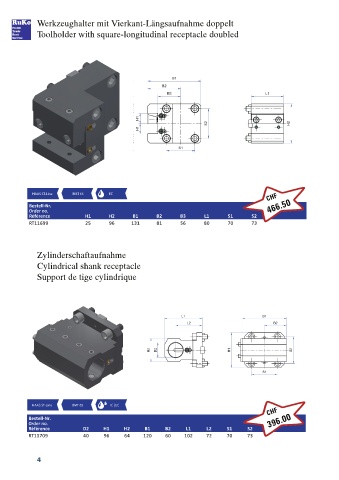

Werkzeughalter mit Vierkant-Längsaufnahme doppelt
              Toolholder with square-longitudinal receptacle doubled


































                                                                                               CHF
            HAAS ST-Line   BMT 65      EC
           Bestell-Nr.                                                                         466.50
           Order no.
           Référence           H1      H2       B1      B2      B3       L1      S1      S2
           RT11699             25      96      131      81      56       80      70      73





              Zylinderschaftaufnahme
              Cylindrical shank receptacle

              Support de tige cylindrique


























            HAAS ST-Line  BMT 65               IC | EC
                                                                                               CHF
           Bestell-Nr.                                                                         396.00
           Order no.
           Référence          D2     H1      H2     B1     B2     L1      L2     S1     S2
           RT11709            40     96      64    120     60     102    72      70     73
