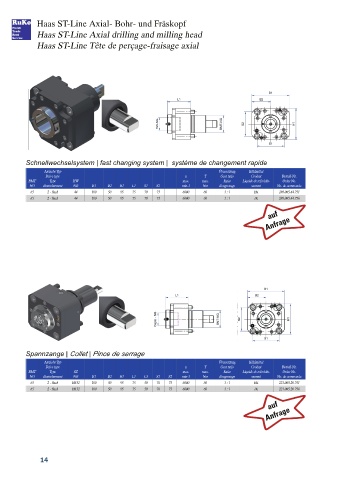

P. 14
Haas ST-Line Axial- Bohr- und Fräskopf
Haas ST-Line Axial drilling and milling head
Haas ST-Line Tête de perçage-fraisage axial
Schnellwechselsystem | fast changing system | système de changement rapide
Antriebs Typ Übersetzung Kühlmittel
Drive type n T Gear ratio Coolant Bestell-Nr.
BMT Type HW max. max. Ratio Liquide de refroidis- Order No.
NG d'entraînement NG B1 B2 H1 L1 S1 S2 min-1 Nm d'engrenage sement No. de commande
65 2 - flach 44 100 50 95 75 70 73 6000 60 1 : 1 EK 280.065.44.751
65 2 - flach 44 100 50 95 75 70 73 6000 60 1 : 1 IK 280.065.44.756
auf
Anfrage
Spannzange | Collet | Pince de serrage
Antriebs Typ Übersetzung Kühlmittel
Drive type n T Gear ratio Coolant Bestell-Nr.
BMT Type SZ max. max. Ratio Liquide de refroidis- Order No.
NG d'entraînement NG B1 B2 H1 L1 L3 S1 S2 min-1 Nm d'engrenage sement No. de commande
65 2 - flach ER32 100 50 95 75 50 70 73 6000 60 1 : 1 EK 221.065.20.751
65 2 - flach ER32 100 50 95 75 50 70 73 6000 60 1 : 1 IK 221.065.20.756
auf
Anfrage
14
